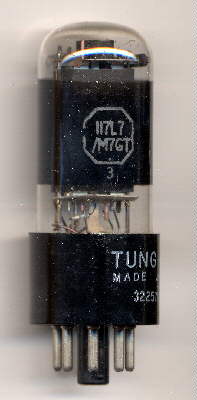

117 L 7 / M7-GT
halfwave rectifier, powerpentode
Heater : indirect; Uf = 117V; If = 0.09A
Maximum Ratings :
Pentode: Ia = 117V;Pa = 6W;Ug2 = 117V;Pg2 = 1W
typical Characteristics :
Diode: Rectifier Ua = 117V;Io = 75mA
Pentode: AF A-Amplifier Ua = 105V;Ug2 = 105V;Ug1 =-5.2V
Ia = 43mA;Ig2 = 4mA;S = 5.3mA/V;No = 0.85W
applications : diode for powerrectifier, pentode for af-powerstages , filament for connection to the110V line
 1  kd
 2  f
 3  ap
 4  g1
 5  g2
 6  ad
 7  f
 8  kp,g3

IO8 pin connections
