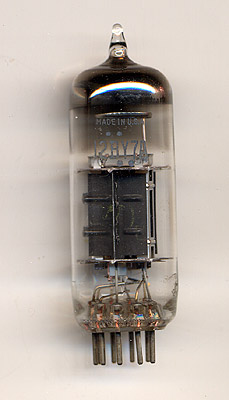

12 BY 7 A (EL 180)
powerpentode
Heater : indirect; Uf = 12V; If = 0,3A
Maximum Ratings : Ua = 300V; Ik = 250 mA; Pa = 12W;Ug2 = 300V; Pg3 = 4W;
Measured Data: S = 12 mA/V
typical Characteristics :
Ua = 250V; Ug3 = 0V; Ug2 = 150V;Ug1 =-2,15V
Ia = 25 mA; Ig2 = 6 mA;
Ia =
applications : high transconductance pentode for video powerstages . Thanks to fam. Weber for donating the tube.
 1  k  9  g3
 2  g1
 3  g3
 4  f
 5  f
 6  fm
 7  a
 8  g2

B9A pin connections
